SUCCESSFULL CRASHTEST
CERTIFIED ZABAG HIGH SECURITY BARRIER Z-HSTS 8000

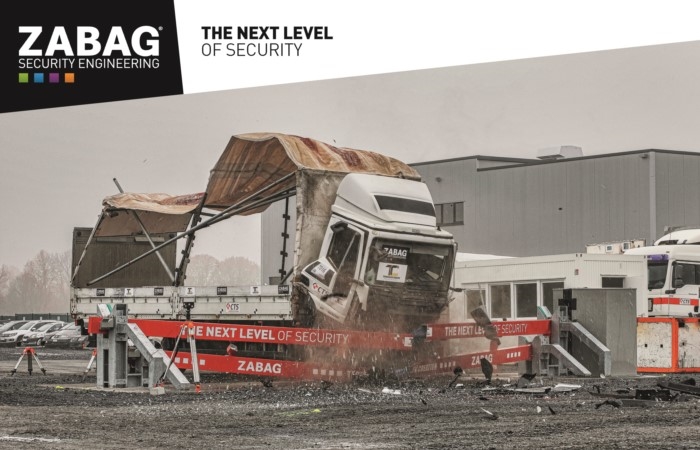

The electro-hydraulically barrier system successfully passed the crash test at the authorized and accredited Crash Test Service Center in Münster. It easily withstood an impact of a 7.2 t truck at a speed of 49.5 km/h. This corresponds with a kinetic energy of 679 kJ.
TOP RESULTS
The Penetration Rate according to ASTM was only P1 (0,3 m) and the Performance Rate according to IWA results Gate V/7200(N2B)/48/90:0,42. These are outstanding values for a barrier with a boom length of 8 m.
AREAS OF APPLICATION
The high security barrier Z-HSTS 8000 is especially suitable to protect people in extremely sensitive areas such as military facilities and government buildings, e.g. embassies, nuclear plants and research centres.
With this successful crash test, ZABAG proved once again, that their high security products – made in Germany – meets the highest technical standards and provides a decisive contribution for the protection of human beings. Protect what’s important – with security solutions made by ZABAG.
|
