Telescopic sliding gate systems cantilevered

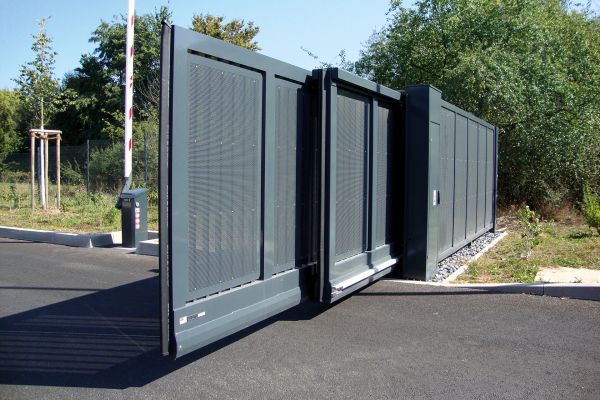

cantilevered telescopic sliding gate with barrier

Where gate back run space is restricted the ZABAG KOMBI TZ ECO gate can provide the solution. When using a 2-part telescopic sliding gate, the opening space is reduced to approx. 83% of the passage.

The gate KOMBI TZ ECO is a very economic and efficient solution. It consists of two gate leaves. The driven gate leaf is made from steel, carrying the second gate leaf made from aluminium. This saves weight and costs because there is no need for a third leaf.

The drive remains stationary in a drive column matching gate height and standing on the outside of the gate. Thanks to the special drive technology, the two leaves are running at different speeds, so that their current end positions are reached at the same time.

Of course, all gates are delivered completely pre-assembled to ensure a fast and cost-saving installation on site.


Clear opening up to 14 m

Gate frame height up to 2.4 m

Optional features

  • cross fall adjustments according to recommendations of various gate associations
  • special infills and coatings
  • special heights up to 5 m
  • serrated top edge, spikes or barbed wire stringers
  • sheet steel infill with company logo by laser-cut out

All ZABAG sliding gates are equipped with active safety buffers at all main and side closing edges.

Technical Details

Corrosion protection Aluminium parts are blasted and powder-coated twice. All steel parts are shot blasted, hot zinc sprayed - hot dip galvanising is also available if specified - powder primed and then powder coated to the finished colour. This special finish ensures high resistance to damage caused by ultraviolet light, scratches, chemicals or oil.
Colour as required, to a RAL standard colour chart
Drive system 400 V drive ZA-MO, duty ratio of 100 %, class S1 with highly user-friendly emergency release
Control panel ZABAG-control panel FU 15.5 or rather 27.5 with integrated inverter for soft start and soft stop will guarantee a fast, silent and low-wear movement.
Drive transmission sprocket and toothed rack module 4 attached to the bottom beam
Gate speed approx. 0.2 m/s
Safety equipment in accordance with DIN EN 12453
Produced in accordance with DIN EN 13241
Certification ISO 9001 : 2015

Application examples
Telescopic sliding gate systems cantilevered - KOMBI TZ ECO
