Certified shallow mounted bollard
Z-HFFP 203

Maximum protection with minimum intervention in road construction

Especially for the protection and safety of people in busy squares and inner-city areas, the flat foundation bollard is a suitable solution.
With a foundation depth of only 200 mm, the Z-HFFP 203 is particularly suitable for applications in high-security areas. The bollards are mainly used
installed in embassies, prisons or critical infrastructures. The low installation depth of only 200 mm helps to avoid collisions with supply lines or media lines and to reduce costs.

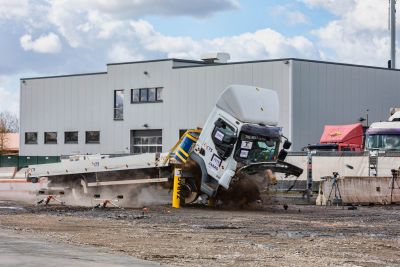

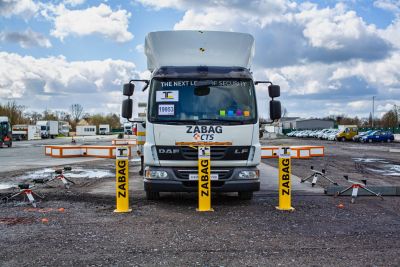

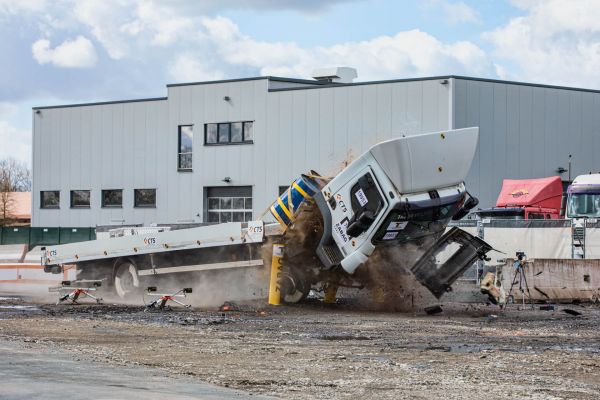

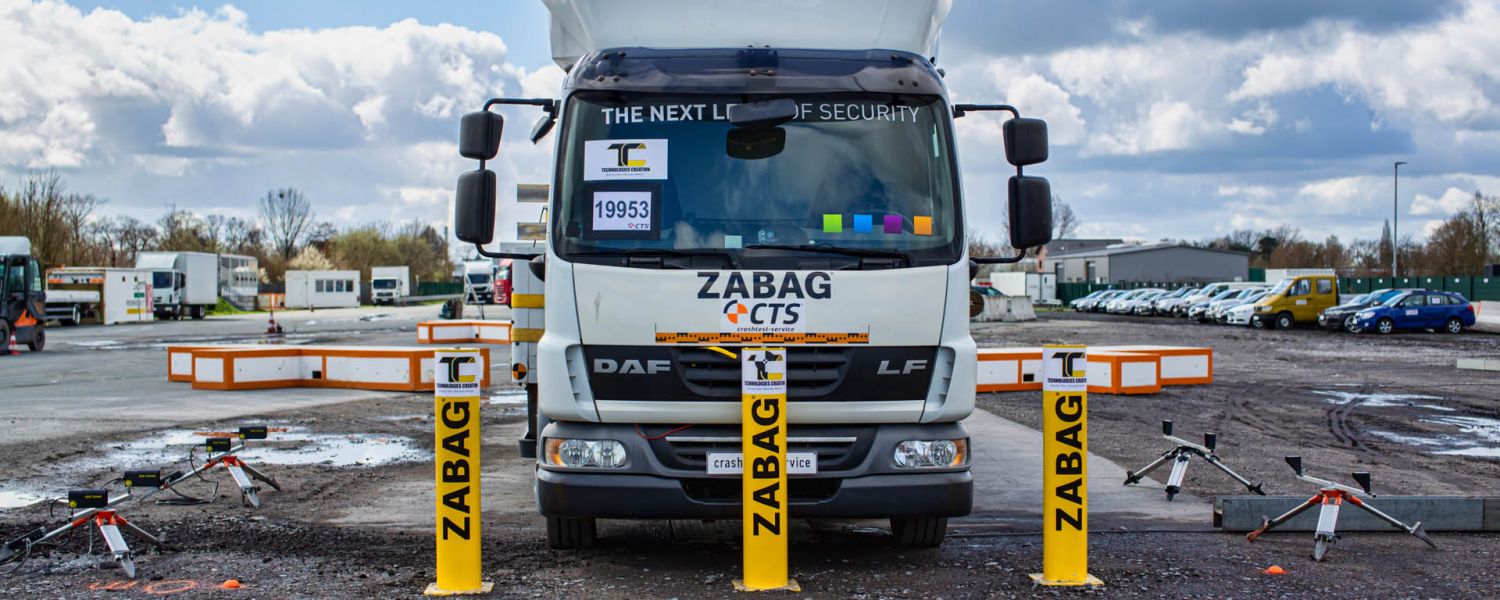

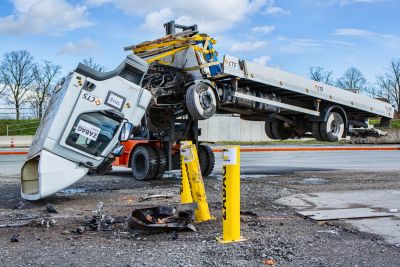

The flat foundation bollard successfully passed the crash test at the CTS test site in Münster. It stopped a 7.2 t truck at a speed of 50 km/h. This corresponds to a kinetic energy of 670 kJ. This corresponds to a kinetic energy of 670 kJ. The penetration depth was only 0.2 m (dynamic).

Download product datasheet

  • City centres
  • Cycle paths and footpaths
  • Pedestrian zones
  • Event sites
  • Computer centres
  • Airports
  • Critical infrastructures
  • Military facilities



  • Truck-weight: 7,2 t
  • Speed: 50 km/h
  • Kinetic Energie: 670 kJ
  • Static Load: 335 kN


• Lowest installation depth with highest possible
tested safety
• Bollard removable due to bayonet lock
- temporary opening of the passage possible
• Integration into the local conditions:
- Construction adapted to the road course
- Various bollard covers
- Can be integrated into street furniture e.g. flower tubs,
benches, advertising boards

Technical details

Corrosion protection System 3Plus - All steel parts, unless hot-dip galvanised on the inside and outside, are steel-grain derusted and given a high-quality arc-spray galvanised finish under exclusion of free weathering. Subsequently, a 2-step powder coating system is applied using the airless method and thermally cured. The coating meets the highest requirements for light fastness, is scratch-resistant, abrasion-resistant and resistant to solvents, chemicals and oils.
Installation depth 200 mm (160 mm concrete + 40 mm covering)
Blocking Height 1100 mm
Diameter • 203 mm - without cover
• 219 mm - incl. stainless steel cover
Certified to IWA 14-1:2013 Bollard V/7200[N2B]/50/90/0,2 | ASTM F2656/F2656M -20 ; P1

High security shallow mounted bollard 203
