certified High Security Bi-fold Gate

With a maximum opening and closing speed of up to 1 m/s, the high-speed bi-folding Gate MAPO FGZ CT achieves opening and closing speeds of barriers, but prevents access securely for pedestrians as well. An innovative catch mechanism combined with a motorized Locking devise stops vehicle break through attacks effectively. These features makes the gate especially suitable for high security applications, such as Embassies, Prisons or other critical infrastructures.

The Gate is designed for a shallow mounted installation depth of 650 mm only. This and the small as possible lay out of the foundations assists, to avoid collisions with existing supply lines, service pipes or other ground wires. Additionally it will also reduce costs. Thanks to the special and newly developed lever arm system, the bi-folding gate runs reliable and fully cantilevered, without need of any additional upper or lower tracks or rails.

Using the ZABAG MAPO FGZ CT, up to 600 operations per day are possible.

Watch crash test video now


certified to

  • IWA 14-1: N2B-48 km/h
  • ASTMF2656: C730-48 km/h

Crashtest details

  • Truck-weight: 7,2 t
  • Speed: 50,5 km/h
  • Kinetic energy: 702 kJ


  • Barrier width min.. 4 to 8 meters
  • up to 2.5 m height (special heights on request)

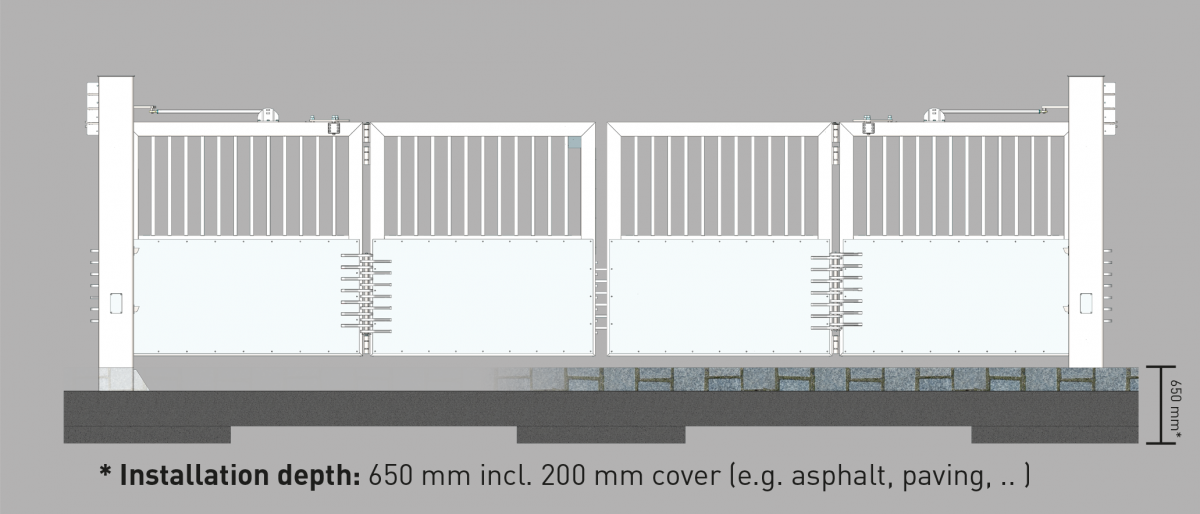

  • installation depth: 650 mm incl. 200 mm cover (e.g. asphalt, paving,...)
  • ZABAG Corrosion protection 3Plus
  • Color according to RAL color chart or individually selectable

Optional features

  • special infills ans coatings
  • serrated top edge or spikes
  • Locking devise controlled by a separate timer
  • military institutions
  • governmental and industrial buildings
  • embassies
  • research centres
  • critical infrastructure


Corrosion protection System 3Plus - All steel parts are shot blasted, hot zinc sprayed, powder primed and then pow-der coated to the finished colour. This special finish ensures high resistance to damage caused by ultravioletlight, scratches, chemicals or oil. Hot dip galvanising is also available if specified.
Colour as required, to a RAL standard colour chart
Drive system drive size according to the gate dimension and frequency of use with lockable emergency release
Control unit microprocessor control unit, frequency converter for soft start / soft-stop
Safety equipment in accordance with DIN EN 12453
Produced in accordance with DIN EN 13241
Certification IWA 14-1:2013:Gate V/7200 (N2B)/48/90:1.5 & ASTMF2656/F2656M-20:P2 (1.46 m)
TÜV-geprüft, ISO 9001 : 2015

High Security Bi-fold Gate
