Fast Folding Gate BASIC MAPO FGZ

Short lead times I High Quality I Marketable prices

With a maximum opening and closing speed of up to one meter per Second, the BASIC MAPO FGZ folding gates are made in the same quality and perform in the same speed as the fast-folding gates of the professional range.

Frequencies of up to 400 cycles/day are possible without any problems. The BASIC MAPO FGZ impresses by its high functionality and economic efficiency.

Download Product Data sheet



Dimensions

BASIC MAPO FGZ
Clear opening: 6, 7, 8 m

Frame height:
2,0 m & 2,2 m plus 100 mm ground clearance

Optional:

The control cabinet can placed on the left or right gate post. Other warning or signal lights, as well as a key switch are available.

Your benefit

  • Foundation drawings available immediately with the order
  • ZABAG Quality
  • fully welded frames and infill bars
  • standardised dimensions
  • recorded test run and force measurement
  • ready to install delivery incl. all required bolts and fence connection strips

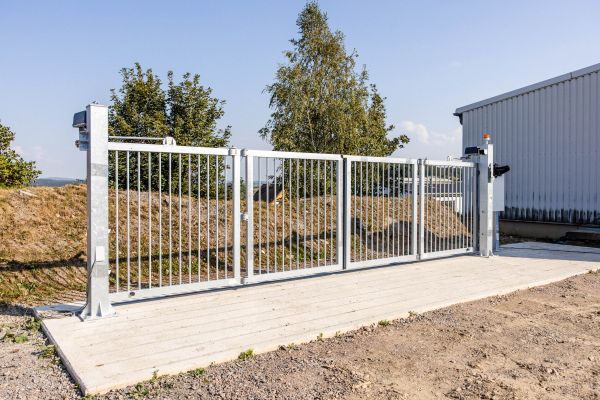

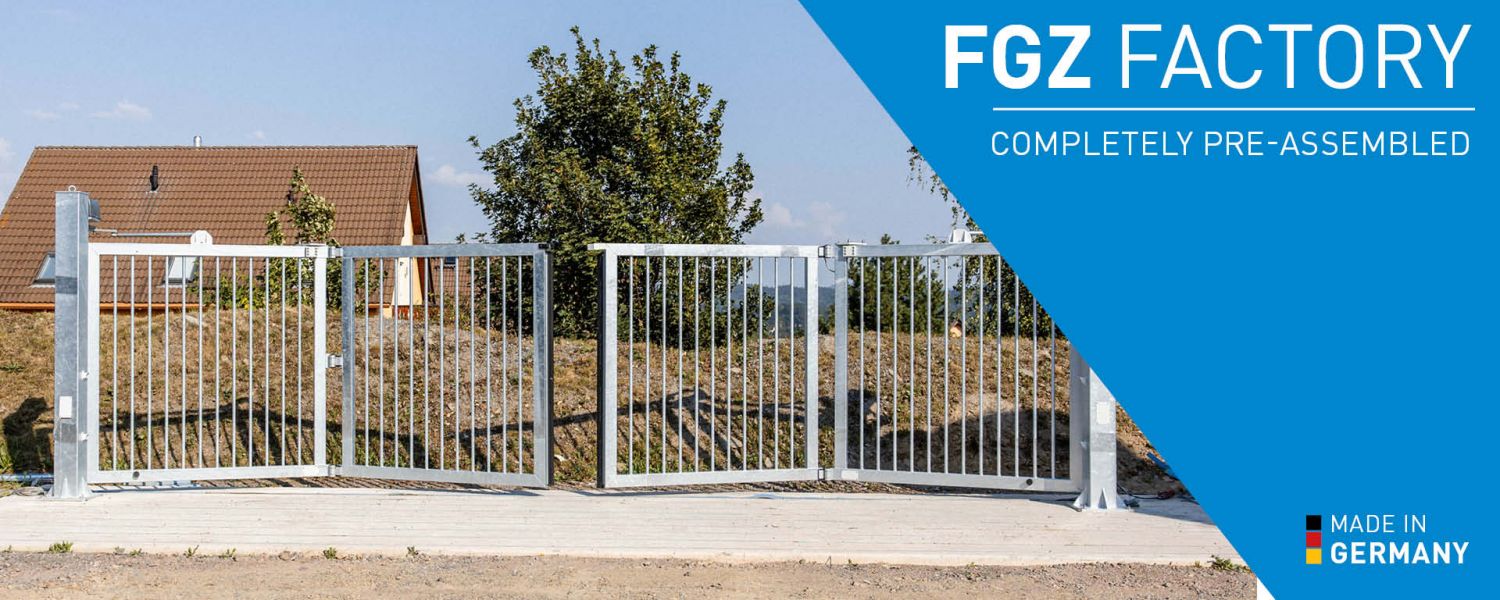

Pre-assembled

ZABAG delivers its fast folding gates with bar infill up to one total gate height of 2.3 m standing and completely
pre-assembled. After a successful test run, all gates were mounted on a wooden transport frame and were tightened securely standing on the truck.

The center of gravity is marked, which simplifies the unloading on site. All cables for the safety buffer are already there routed and wired.
The drive is mounted and the lever arms are connected to the gate leaves. After delivery, the entire package is placed on the foundation
and bolted down. Not leaves needs to be hinged in, no drive arms needs to be connected , no safety buffers needs to be wired up, which is saving al lot of installation time.

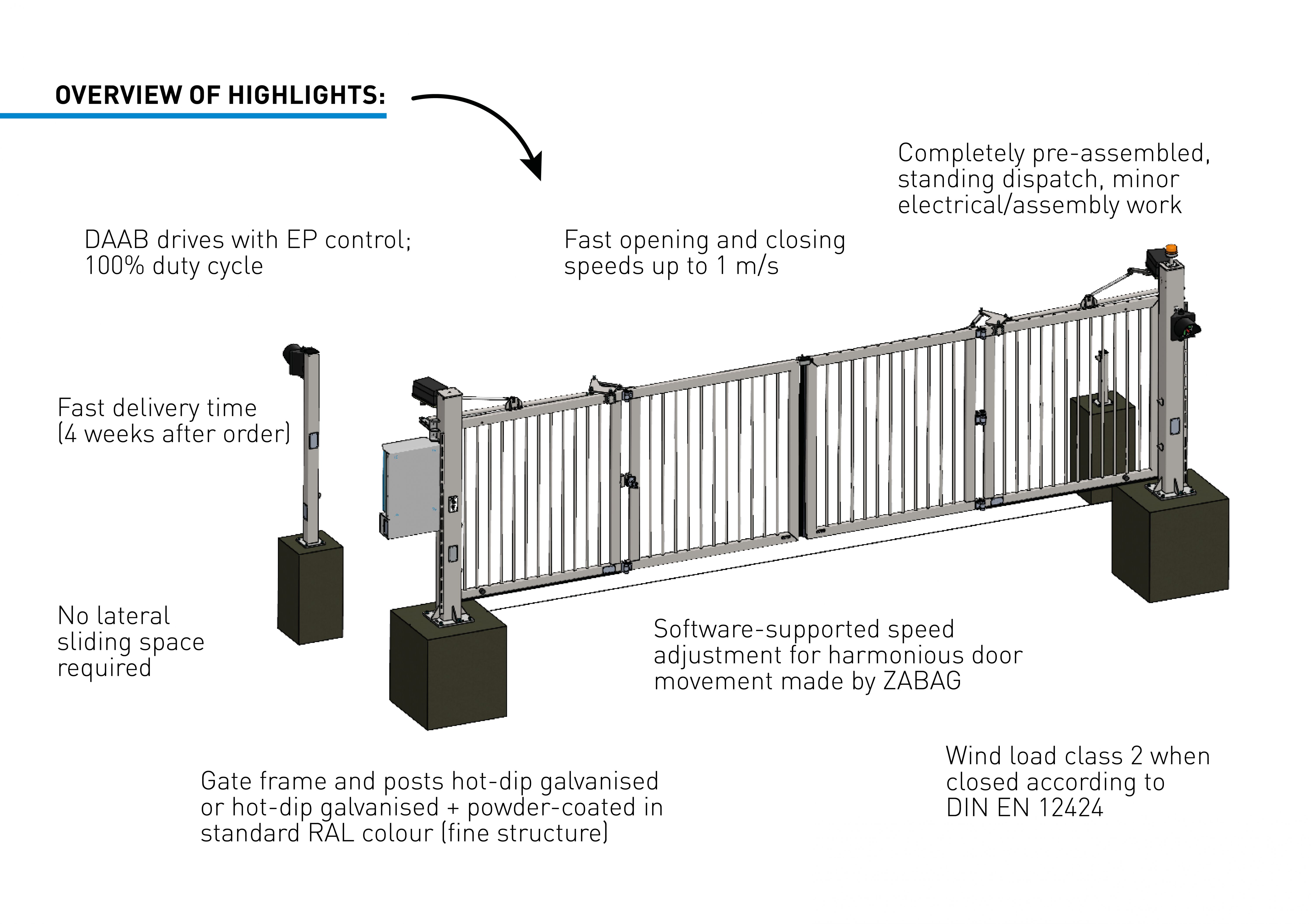

Technical Details

Corrosion protection hot dip galvanized.
Optional corrosion protection 3Plus - All steel parts are shot blasted, hot zinc sprayed, powder
primed and then powder coated to the finished colour. This special finish ensures high resistance
to damage caused by ultraviolet light, scratches, chemicals or oil.
Colours as required, to a RAL standard colour chart
Drive systems in accordance to gate weight and frequency of use with a lockable emergency release
Control panel EP103 microprocessor control panel, inverter for running speed and Soft-Stop / Soft-Start
Safety equipment in accordance with DIN EN 12453
Produced Manufactured in accordance to Product norm DIN EN 13241
Certification Certified to TÜV, ISO 9001 : 2015
