Bi-fold gates MAPO FGZ
Speed of a barrier, security of a gate

custom-made quick-folding gate

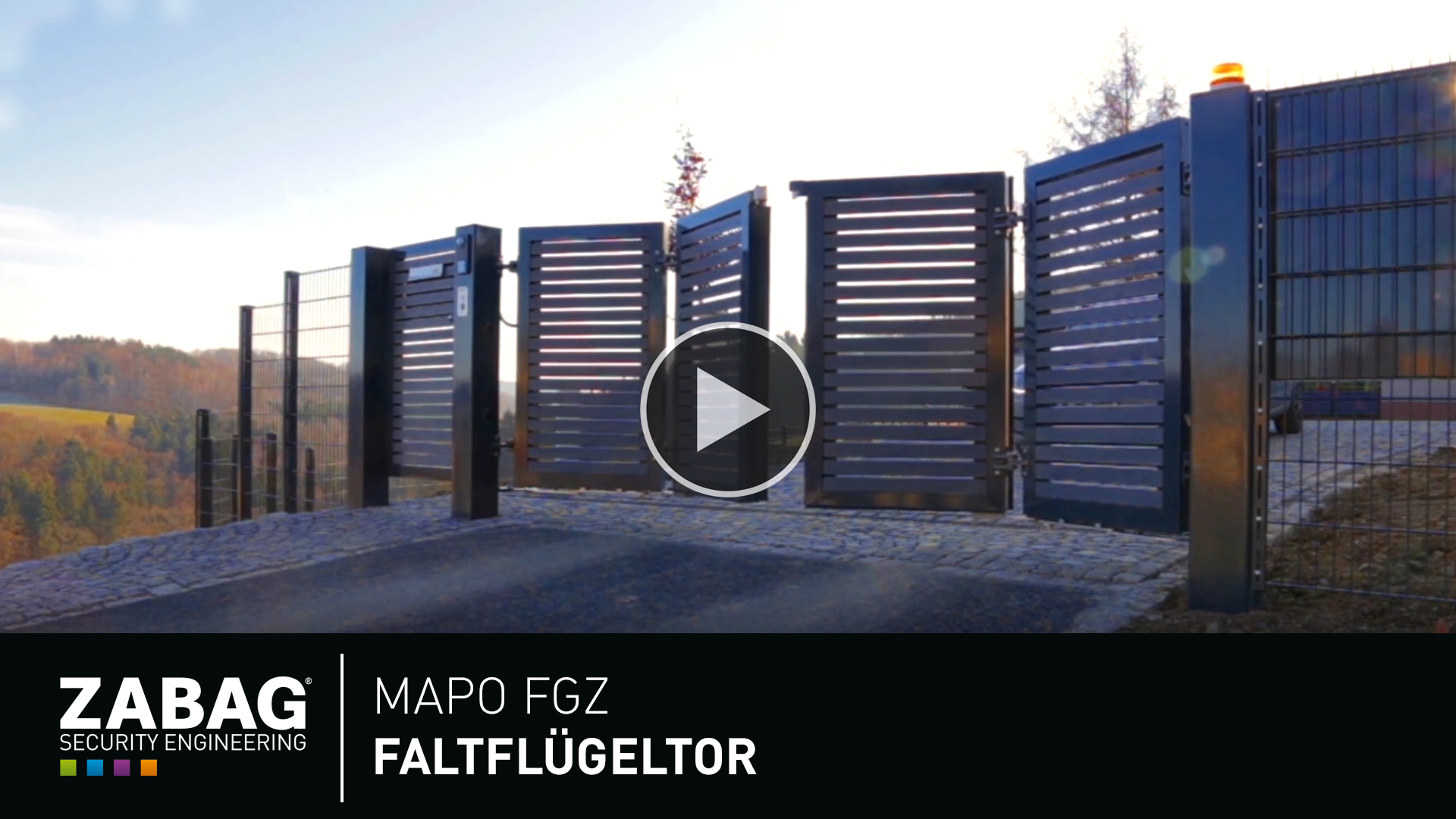

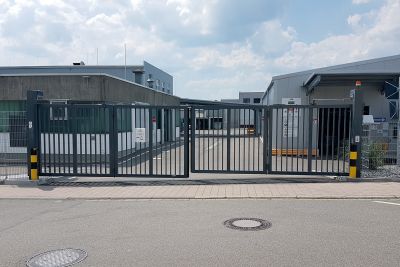

ZABAG MAPO FGZ bi-fold speed gates achieve opening/closing speeds of up to 1m/second, thus equaling or exceeding the operating time of many rising arm barriers but with the added advantage of securing an entrance against both vehicles and pedestrians.

The bi-fold gates MAPO FGZ impress thanks to their functionality and efficiency as well as to their space-saving design. This style of gate is most practicable to secure two-way restricted entrances and locations where there is a limited space for the gate leaves.

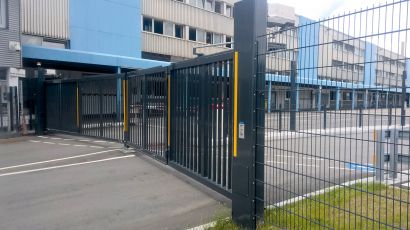

Thanks to the special innovative lever arm system, the bi-fold gate operates reliably and without any additional guide tracks. However, for certain applications the gate leaves can be guided by an optional track in the roadway (heated if required) or by an overhead track.

Up to 600 open/close cycles per day are no problem with the ZABAG MAPO FGZ bi-fold gates. If security demands are higher, the gates can be equipped with an additional motor driven locking device, which keeps the gate secure locked in closed position.

Dimensions

MAPO FGZ single leaf
clear opening up to 7 m

MAPO FGZ double leaf
clear opening up to14 m



Gate frame height up to 2.4 m

(other widths and heights upon request)

Variants

FGZ TL - trackless bi-fold gate

FGZ TT - bi-fold gate with overhead track

FGZ BT - bi-fold gate with track in the roadway (heated if required)

OPTIONAL FEATURES

  • cross fall adjustment
  • crash resistant
  • special infills and coatings
  • opening angels up to 110°
  • addition locking with motor driven bolts.
  • serrated top edge or spikes
  • laser-cut company logo

Lock Gates

Wherever unauthorized access shall be prevented, but authorized access must be permitted, vehicles are getting locked with 2 gates. The authorized vehicle enters the lock through the first gate. After entering, the first gate closes. Only after the first gate is completely closed, the second gate can be opened. This can happen automatically or via a new verification.

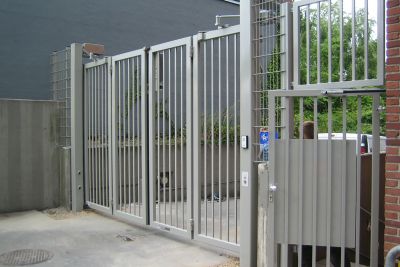

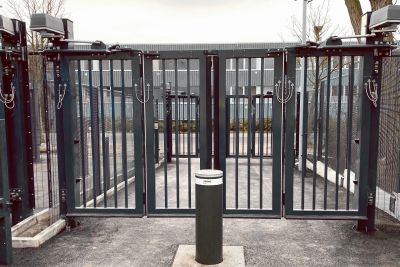

In high sensitive areas, the passage can also be secured against a vehicle attack trying to break through. This can be done, for example, with a bollard, a wedge or even with a reinforced and impact resistant gate.

A vehicle lock can be designed with different door types. But high-speed folding gates are often particularly suitable. It`s high opening and closing speeds of approx. 1 m/s, reduces the time the gates is standing open and the time it takes for a vehicle to complete a full lock cycle to a minimum.

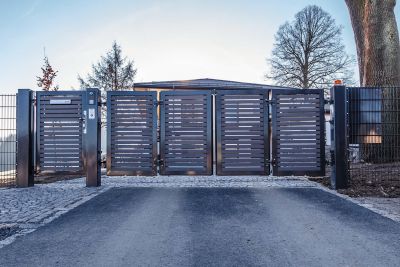

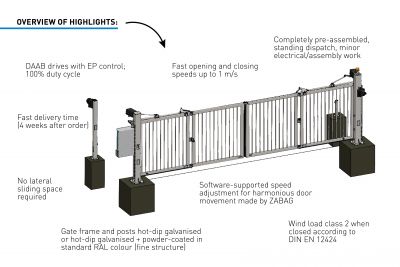

PRE-ASSEMBLED

ZABAG has been supplying its bi-fold gates up to a total gate height of 2.3 m completely pre-assembled. The width of the passage does not matter.

After a successful test run, the gates are mounted on a wooden substructure. Then the center of gravity is marked and the system is lashed standing on the truck.

With electric gates, all cables for the safety buffers are already laid and wired up. The drive is installed and the lever arm is connected to the gate leaf.

After delivery, the entire package is to be placed on the foundation and bolted down. There is no need to hang in the leaves, wire the safety buffers or mount the lever arms from the drive unit.

Of course, this means a drastic reduction in assembly times. The time for the required forklift or crane is also reduced. In addition, templates for the base plates are available from ZABAG in advance. This enables the installer to set the anchor bolts before delivery.

The upper edge of the foundation is - as is usual with ZABAG - at -200 mm below the road level. In the case of foundations being on road level, the 200 mm can be added to the total gate heights.

TECHNICAL DETAILS

Corrosion protection 3Plus - All steel parts are shot blasted, hot zinc sprayed, powder primed and then powder coated to the finished colour. This special finish ensures high resistance to damage caused by ultraviolet light, scratches, chemicals or oil. Hot dip galvanising is also available if specified.
Colour as required, to a RAL standard colour chart
Drive system drive size according to the gate dimension and frequency of use with
lockable emergency release
Control unit microprocessore control unit, frequency converter for soft start / soft-stop
Safety equipment in accordance with DIN EN 12453
Produced in accordance with DIN EN 13241
Certification TÜV-tested, ISO 9001 : 2015
