Certified shallow mounted bollard
Z-HFFP 273

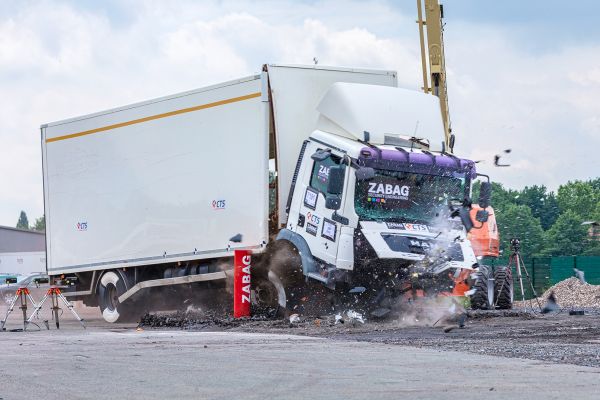

truck hits bollard while crashtest

This certified shallow mounted bollard is meant to protect people and visitors of crowded places in inner cities and event areas. Due to its depressed installation depth of only 300 mm, the Z-HFFP 273 is especially suitable for inner city market places, walkway or bicycle lanes. The local conditions – i.e. supply circuits, sewage pipes or drains won`t collide with the shallow foundations, but the foundation will also ensure a long-lasting and secure access protection on one of the highest ever tested levels.

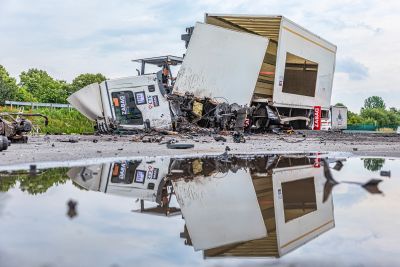

ZABAG‘s fixed and shallow mounted bollard Z-HFFP 273 successfully passed the crash test at the authorized Crash Test Service Center in Münster with a 12t truck and more than 80 km/h without any problem. This complies to a kinetic energy of 3.043 KJ and an equivalent static load of 1.522 KN (certificate according to IWA 14-1:2013 Bollard V/12000[N3D]/80/90/5.4).

Due to design and construction, the system can be integrated perfectly into its surroundings by followings curves and by using different bollard covers. Pedestrians, cyclists, wheelchair and baby buggy users can pass the bollards without disturbance.

To allow access to authorized vehicles, police or emergency service, the system is combinable with the retractable bollards out of our range.

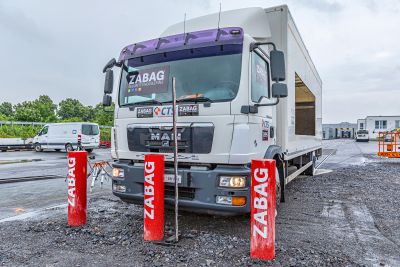

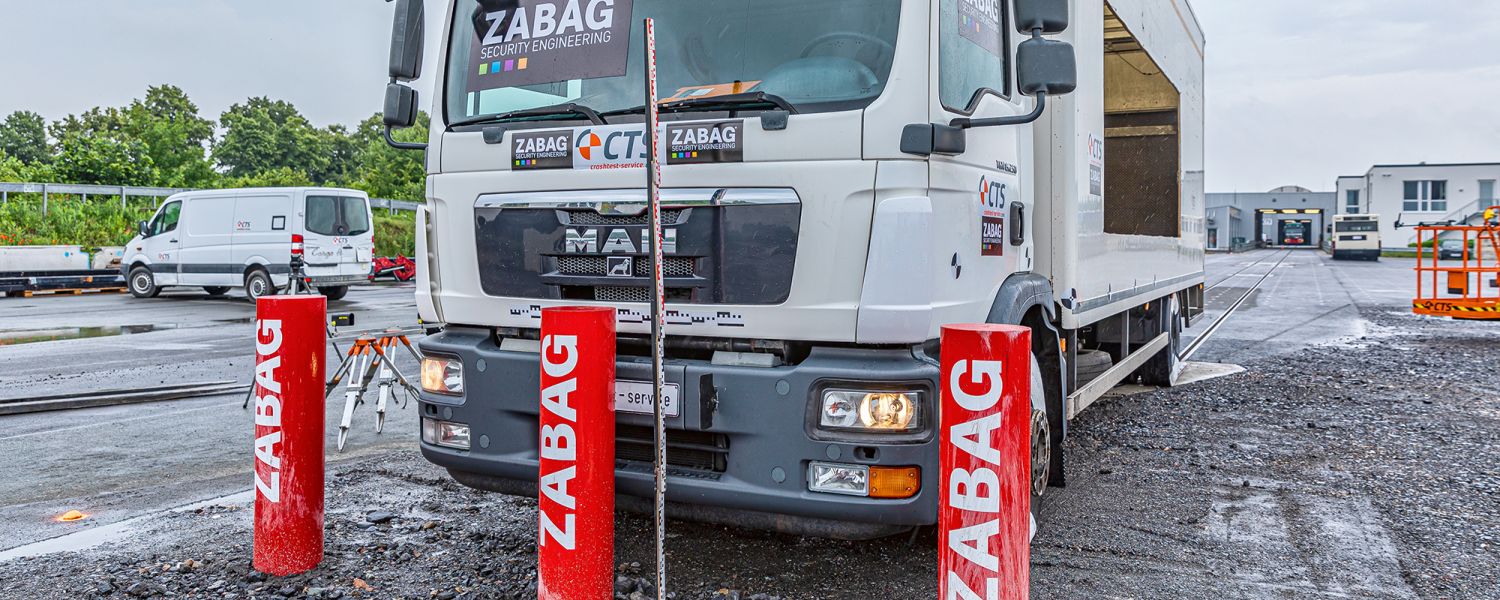

bollards moments before a collision with a truck

• inner citys
• walkways and bicycle lanes
• pedestrian zones
• event areas
• data centres
• airports
• critical infrastructure
• milititary institutions



  • truck weight: 12 t
  • speed: 80 km/h
  • kinetic energy: 3.043 kJ
  • static load: 1.522 kN


  • lowest installations depth matched with the highest possible and tested safety
  • Comply with the local conditions by:
    - followings curves
    - using different bollard covers
    - building over city furniture like benches, plant buckets or advertisement signs

Watch the crash test video now

Technical details

Corrosion Protection 3Plus - All steel parts are shot blasted, hot zinc sprayed, powder primed and then powder coated to the finished RAL colour. This special finish ensures the highest possible resistance against damages caused by ultraviolet light, scratches, chemicals or oil.

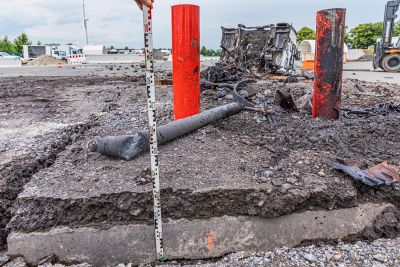

Installation depth 300 mm (200 mm concrete + 100 mm covering)
Blocking height 1100 mm
Diameter • 250 mm - without cover
• 273 mm - with cover made of stainless steel
Certification IWA 14-1:2013 Bollard V/12000[N3D]/80/90/5.4
technical drawing of a shallow mounted bollard

High security shallow mounted bollard
